Instrument air compressor case study
Project:
ADNOC offshore UMM LULU field
Output:
Instrument air / 803.2 Nm3/h / 9.5 bar (g)
Scope:

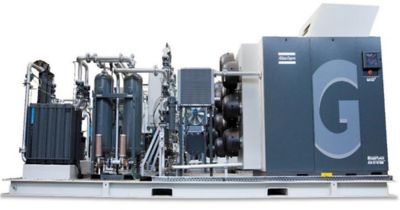

1 x ZT 110-10‐50X HAT - air cooled oil free rotary screw compressor
Motor Power: 160 kW
Instruments - Zone 1, Gas group IIB, T3
Electrical - Zone 1, Gas group IIB, T3
JB: EX e / Ex d
Controls: Zone 2 PLC
Location:
Abu Dhabi
Project:
ADNOC onshore BCDS project
Output:
Instrument air / 402.59 SCFM / PDP -15°C / 10.7 barg
Scope:

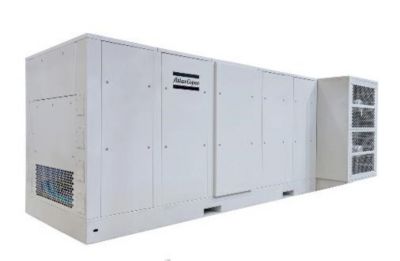

3 x GA 90 – air cooled oil lubricated rotary screw compressor
Motor Power: 100 kW
Instruments - Zone 2, Gas group IIC, T4
Electrical - Zone 2, Gas group IIB, Temp. Cl. T3
Controls: ELEKTRONIKON with SKID PLC
Location:
Abu Dhabi
Project:
PDO AMAL STEAM
Output:
Instrument air / 874 Nm3/h / PDP -50°C / 9.8 barg
Scope:

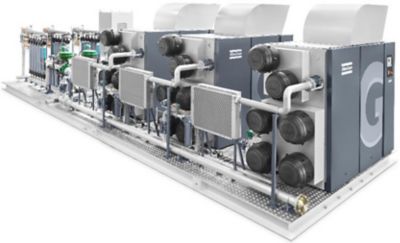

3 x GA90 – air cooled oil lubricated rotary screw compressor
Motor Power: 100 kW
Instruments - Zone 1, Gas group IIB, T3
Electrical - Zone 2, Gas group IIB, Temp. Cl. T3
Controls: ELEKTRONIKON with SKID PLC
Location:
Oman
Project:
ADNOC onshore Al Dabb’iya surface facilities - PHASE III
Output:
Instrument Air / 2458 Nm3/h / / 9.5 bar(g)
Scope:
4 x GA 400 – air cooled oil lubricated rotary screw compressor
Motor Power: 400 kW
Instruments - Zone 1, Gas group IIB, T3
Electrical - Zone 2, Gas group IIB, Temp. Cl. T3 JB : EX e
Controls : DCS
Location:
Abu Dhabi
