NGMs series
NGMs 1-3 nitrogen generator | Atlas Copco
If you are looking for a cost-efficient point-of-use nitrogen generation solution that meets your low-flow N₂ requirements, then the NGMs will be your preferred choice. This plug-and-play membrane nitrogen generator is compact, reliable and extremely low-maintenance.
Top Downloads
View all Downloads- Description
- Benefits
- Specifications
- Downloads
- Additional readings
- Related products Contact us
Description

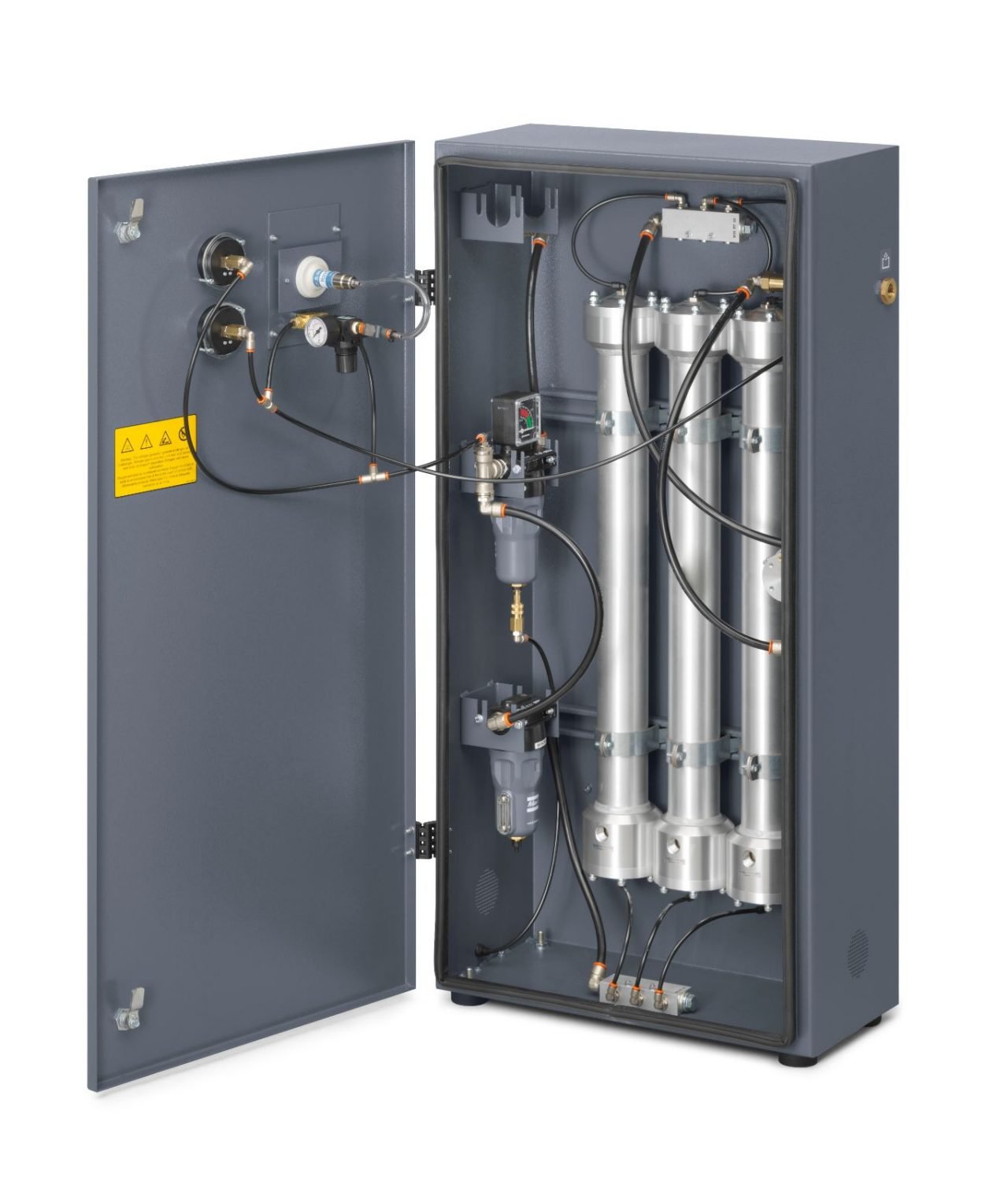

Compact all-in-one N₂ supply
NGMs nitrogen generators utilize properiarty membrane separation technology. You can select the nitrogen purity your application requires, from 95% to 99.5%.
The all-in-one solution includes:
Fully integrated package including low pressure drop filtration
Pressure gauges allow accurate system monitoring at all times
Built in gas purity sensor with easy calibration
Fully enclosed protective canopy
Membrane nitrogen generators
Based on innovative membrane technology, Atlas Copco’s membrane nitrogen generators are flexible enough to adapt to your specific applications. And with low operating costs they offer an excellent return on investment.
Benefits
Technical benefits
Low cost, high savings
With NGMs you will receive the right amount of nitrogen you need at a much lower cost than purchased N₂. You don't even need electrical supply to generate nitrogen.
Ready to go right away
NGMs will get you started right away, no need to order and store bottled N₂. All you need is a supply of dry compressed air and you can start generating your own nitrogen.
Long-term productivity
This membrane generator will foresee your on-site nitrogen for a long lifetime with long maintenance intervals so you don't have to worry about the continuity of your nitrogen supply.
Specifications
Technical specifications
| Type | Nitrogen - FND | Dimensions (W x D x H) | Weight | ||||||||
| 95% | 96% | 97% | 98% | 99% | 99.50% | mm | in | kg | lbs | ||
| NGMs 1 | FND Nm³/h | 4.7 | 4 | 3.2 | 2.5 | 1.8 | 1.4 | 560 x 285 x 1150 | 22 x 11 x 45 | 56 | 123 |
| FND Scfm | 2.8 | 2.3 | 1.9 | 1.5 | 1.1 | 0.8 | 560 x 285 x 1150 | 22 x 11 x 45 | 56 | 123 | |
| NGMs 2 | FND Nm³/h | 9.4 | 7.9 | 6.5 | 5 | 3.6 | 2.9 | 560 x 285 x 1150 | 22 x 11 x 45 | 59 | 130 |
| FND Scfm | 5.5 | 4.7 | 3.8 | 3 | 2.1 | 1.7 | 560 x 285 x 1150 | 22 x 11 x 45 | 59 | 130 | |
| NGMs 3 | FND Nm³/h | 14 | 11.9 | 9.7 | 7.6 | 5.4 | 4.3 | 560 x 285 x 1150 | 22 x 11 x 45 | 62 | 137 |
| FND Scfm | 8.3 | 7 | 5.7 | 4.4 | 3.2 | 2.5 | 560 x 285 x 1150 | 22 x 11 x 45 | 62 | 137 | |
