ALF 67/80D

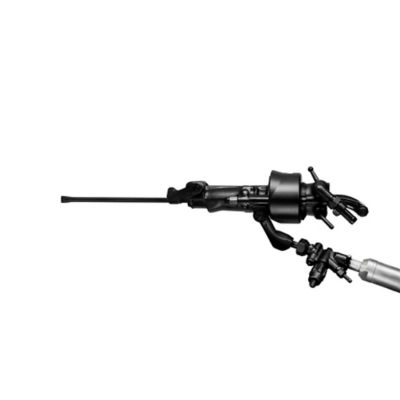

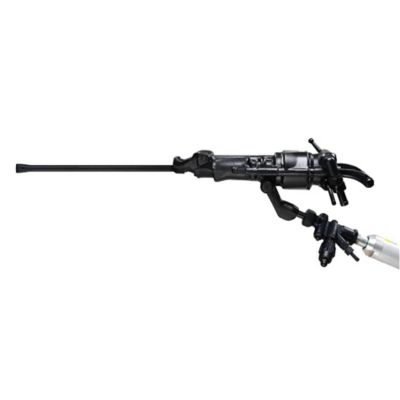

Pusher leg
Pusher leg
Double telescopic
The legs provide a long feeding length from a relatively short length feed. Intended for drilling holes high up or when extra feed length is required.
Pusher leg
The legs provide a long feeding length from a relatively short length feed. Intended for drilling holes high up or when extra feed length is required.
These pusher legs were made with an aluminium alloy that was first developed for use in spacecrafts. They’re strong and feature a large piston diameter for high feed force. The simple and robust design makes operations reliable and promise minimum maintenance time.
|
Pusher leg type |
Double telescope |
|
Feeding length |
1 855 mm |
|
Length extracted |
3 450 mm |
|
Length retracted |
1 595 mm |
|
Weight |
19 kg |
|
Piston diameter |
67 mm |
|
Part number (not sold within EU) |
8321 0201 69 |
