Hem flange bonding is one of the most challenging joining methods in car body construction. Here, the focus is placed on the ideal distribution of material to achieve an optimal filling of the seam area and thus ensure structural stability and prevent corrosion. The application process of the adhesive has a significant impact on this.
April 21, 2020
Europe Dispensing solutions Joining Solutions Products Articles North America Topics Joining solutions South America Automotive Industrial Tools & Solutions Africa and Middle East Asia Global Australia
There are three major application processes in in car body construction: structural bonding, stiffening and hem flange bonding. Hem flanges are used for closure parts that are visible from the outside, such as doors, front hood, engine hood or trunk. The closures are manufactured in a separate process step within the body-in-white manufacturing process. Hem flange bonding is one of the most challenging joining methods in the body shop. The adhesive fulfills important structural properties, improves crash safety, and protects against corrosion. Other joining techniques, such as spot welding or riveting, are not suitable here, as they leave visible joints and compromise the aesthetic appearance. In hem flange bonding, two sheets are nested inside each other. The adhesive – often a one-component or two-component epoxy or a rubber-based material – is applied to the outer sheet. It is then bent around the inner sheet and folded over. During hemming, the adhesive is pressed, thus filling the hem area.
The long-term stability of this bond depends on the material distribution in the hem. The following criteria are relevant:
If the hem is insufficiently filled with adhesive, this leads to the formation of cavities and air channels. During the subsequent e-coating process, these cavities fill with the liquid. This liquid then dries during the curing in the oven, resulting in air bubbles and wetting defects. In addition to visual defects, the hem flange also becomes susceptible to corrosion. The vehicle body has to be discharged for reworking. If, on the other hand, too much adhesive has been applied, or the adhesive bead was positioned incorrectly, this leads to unwanted material leaks. The component has to be reworked before painting to ensure that the e-coat bath is not contaminated or to avoid problems during cosmetic sealing – as a consequence, the material consumption and quality cost increase.

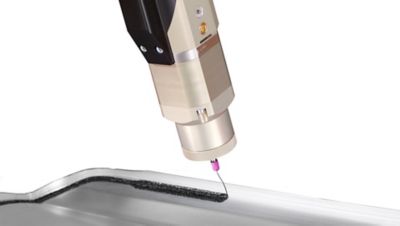

There are numerous factors in the complete joining process which may influence the material distribution in the hem – such as the choice of adhesive or the hemming method. One of the key influencing factors, however, is the application process itself. In general, automated robot-based adhesive metering and dispensing systems are used to control parameters such as material flow, temperature, pressure and application speed in a precise and repeatable manner. There are generally two suitable application patterns: a classic bead application and what is often referred to as a swirl application, where the material is applied in a swirling motion. Both applications can provide high-quality hem flange bonding in ideal conditions.
With both bead and swirl applications, the quality of the material application can be additionally ensured by means of a visual inspection system. Inline camera-based quality monitoring systems detect errors regarding the width, continuity and position of the application immediately during application – without additional cycle time. In addition, some camera systems also offer an automated bead repair function for automatic repair of the bead, for example, in case of an interruption of the adhesive application.
Common criteria for visual bead quality inspection:
Hem flange bonding are one of the most challenging tasks in body-in-white manufacturing. The material distribution in the hem has major impacts on the long-term quality of the adhesive bond. Defects can cause corrosion and lead to high reworking costs. A swirl application can counteract this and increase the process reliability. There are, however, diverse factors that influence the quality and productivity of hem flange bonding, and they require comprehensive joining and process expertise. In its global Innovation Centers, Atlas Copco works closely together with customers and material suppliers – from application development through material testing to process optimization and quality assurance.
