SF and SF+ series
SF and SF+ oil-free scroll compressors
Supreme energy efficiency
Atlas Copco belongs among one of the most expert scroll air compressor manufacturers. The SF and SF+ oil-free scroll compressors deliver absolutely pure oil-free air with supreme energy efficiency.
Key technical specifications
- Customer stories
- Related products
- Additional readings Contact us

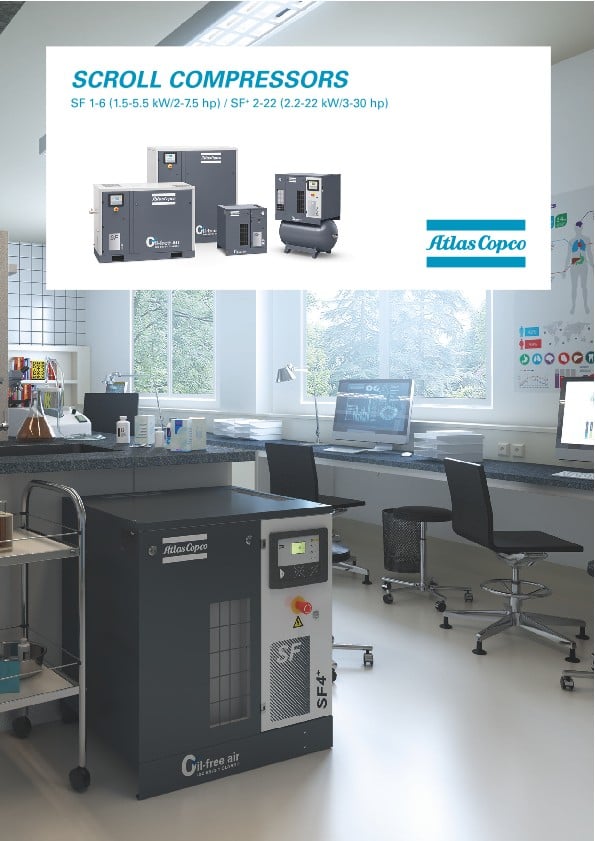

SF Scroll compressors
The SF and SF+ plus scroll compressors join our lineup of oil-free air technologies such as screw compressors, tooth and centrifugal, giving you, the customer, the perfect option for your needs and operations. This reliable scroll compressor is hosted in a small package, resulting in a small footprint.
The SF series answers your demands through innovative technologies and supreme energy efficiency without compromising quality. The SF and SF+ series comes fully loaded with the state of the art features such as high-end controller Elektronikon®.
SF+ 8-22: MODULAR & FLEXIBLE
SF+ 8-22 multi-scroll units bring in the benefits of a modular system utilizing two to four compressor modules integrated into one canopy. The Elektronikon® continuously monitors the status of each element and starts and stops the compression elements, ensuring that the compressed air output matches the air demand.
Advanced scroll air compressor technology
Air compression is achieved by the interaction of a fixed and orbiting scroll. Air at inlet pressure enters the compression chamber at the exterior side of the scroll element. Once the air is drawn in, the orbiting scroll seals off the inlet port. As the scroll continues its orbit motion, the air is progressively compressed into an increasingly smaller ‘pocket’. A continuous compressed airflow leaves the scroll element through a discharge port in the center of the fixed scroll. This process is continuously repeated, resulting in the delivery of pulse-free compressed air.
There is no metal-to-metal contact between the compression scroll elements. As a result, the moving parts do not touch during the actual compression. Unlike oil-lubricated compressors, there is no need for oil lubrication.
Advantages of scroll compressors
With so many models to choose from, which one is the right compressor for you? This guide will help you in making the right decision for your business.
