What is a desiccant? Materials and mechanism

A desiccant is a hygroscopic material: a drying agent that pulls water vapor out of the air around it and holds on to it. Most people have encountered it as the small sachets of beads packed with electronics, medicines, and food.

The mechanism is adsorption, not absorption: water molecules cling to the desiccant's vast internal surface rather than being taken into its bulk and chemically changing it. A single gram of silica gel carries hundreds of square meters of internal surface, which is why so little material holds so much water. Silica gel can take up around 40% of its own weight in water.

Adsorption is reversible, so if you heat the saturated desiccant or drop the pressure around it, the water leaves again, and it is ready to dry more air. That is why desiccant is ideal for industrial use.

Several materials are hygroscopic enough to be useful. The choice sets the pressure dew point a dryer can hold, how much energy regeneration costs, and how long a charge lasts.

Silica gel, activated alumina, and molecular sieve all come as granules or beads, often layered so a water-resistant bottom layer protects the high-performance layer above.

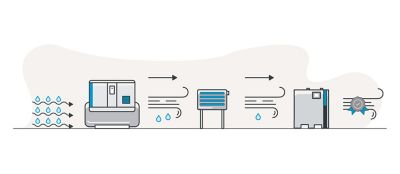

All atmospheric air carries water vapor, and compressing it concentrates the moisture. Left in the system, it corrodes pipework, damages pneumatic tools, and spoils product.

Desiccant air dryers handle this with two towers. Wet compressed air passes up through the charge in one tower while the other is regenerated, then the dryer switches them over. The twin design is not redundancy: the material has a finite capacity and must be dried out before it can work again.

How that regeneration is done sets the running cost. A heatless dryer expands dry air from its own outlet back through the saturated tower, and that purge typically consumes 16% to 19% of rated flow, which is why blower purge and zero purge dryers exist. A refrigerated dryer instead chills the air to condense water out, reaching around +3 °C rather than -40 °C.

Beads are never still in a switching dryer. Pressure pulsations grind them against each other until they wear down, the charge loses capacity, and the dew point drifts with it. The abrasion also sheds a fine dust, which has to be filtered out to protect compressed air quality, and it is what an operator is exposed to when the charge is replaced.

Structured desiccant does away with the granules. It is a single ceramic block with straight channels molded through it, so the air follows a fixed path instead of forcing its way between moving particles.

Those figures are Atlas Copco's own, measured against the CD dryer it replaced. They are why the CD+ range runs continuously at 100% flow, where most dryers are designed for 70% to 80%.

Structured desiccant covers the pressure dew points most compressed air systems actually need: -20 °C and -40 °C. For -70 °C, we still fill the towers with beads, because that dew point calls for a different material. It resists vibration and can be mounted horizontally. This means it survives installations that would otherwise wreck a bed of beads (e.g. transport applications). The smaller footprint matters in tight plant rooms, on skids, and inside containers.  If you're asking which technology to use rather than which desiccant, start by choosing a dryer.

Whether a structured desiccant is the right choice depends on the pressure dew point your process needs, your airflow, and how your compressor room is laid out. Our specialists will work through it with you.
