Table of contents:
- Oil free compressors benefits
- High/ medium pressure applications
- Types/ benefits of high pressure compressors
- Low Pressure applications
- Types/ benefits of Low pressure Blowers
- Case studies
Oil free compressor
Atlas Copco offers you a wide range of 100% oil free reliable, energy-efficient & cost-effective compressors, for all your low, medium & high pressure applications. Our oil-free air compressors cover a wide range of screw & tooth, piston, water-injected & scroll, centrifugal compressor. An oil-free solution for every application
What benefits you would get from our oil-free compressor range?
- Highest air quality
- Reduce your operating cost
- ISO-certified technology
- Environmental compliance
- Eliminates Risk of Contamination
- Reduce Maintenance Costs
- Reduce Energy Costs
Atlas Copco is a market leader offering a wide portfolio of innovative air products, services and solutions that enhance your energy efficiency and productivity objectives. From processes that require large volumes of flow, to industries with a fluctuating demand that requires the use of the oil free VSD compressor, Atlas Copco will assess and propose the best oil free air compressor solution for your needs.
High/ Medium Air Compressor pressure applications
With specialised experience in high pressure compressor technologies, we are able provide tailored solutions to meet your needs - provide the best possible value over the life cycle of the equipment to our customers in your applications that need high pressure:
- PET blowing bottles
- pharmaceutical
- Food & Beverage
- Surge vessels
- Gas application (Nitrogen, Carbon Dioxide, Hydrogen, Natural Gas, Helium).
Types of oil- free compressors for high & medium pressure applications

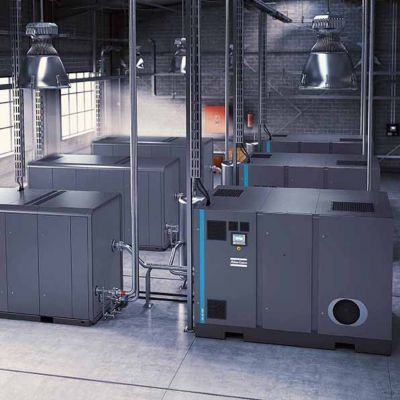

ZD Range.
Oil-free medium pressure screw compressor with high pressure piston booster: between 25 & 40 bar
Oil-free medium pressure screw compressor with high pressure piston booster
Our ZD (VSD) hybrid solution combines the advantages of oil-free screw technology, drum type adsorption dryer and the well-known piston booster technology. The result is in 100% oil-free dry air or nitrogen for medium- and high-pressure applications.
The ZD system is easy to install and easy to use: no complex connections or foundations are required. Z compressor and D booster can be used in parallel or separately reaching different levels of pressure ratios between 25 and 40 bar, which saves you maintenance time and costs.
Four-stage air compression with high-efficiency intercooling maximises compression efficiency. More savings can be achieved with adding Variable Speed Drive (VSD) and energy recovery.

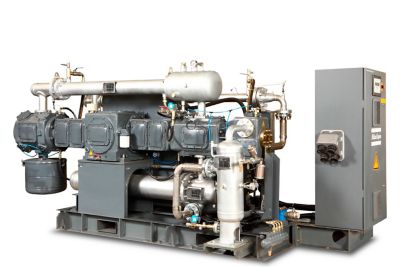

P Range.
High-pressure oil-free reciprocating piston compressors: 25 to 40 bar / 37 to 160 kW
Designed for continuous reliable and safe operation at low cost, our oil-free reciprocating piston P-compressors are built to operate round the clock for all your oil-free high pressure applications. Thanks to 3 compression stages with pressure ratios up to 42 bar(e) , they perform in the most stringent environments.
The elimination of most friction load, anti-vibration mounts, excellent cooling and low inter-stage temperatures increase the lifetime of the machines and make them your reliable source of oil-free high pressure air.
The compressors are delivered on a single skid for easy and safe maintenance. Thanks to the Elektronikon® control unit, you can tailor the air pressure to your specific needs, reducing energy costs and increasing your overall operating efficiency.
Water-cooled reciprocating piston compressors: between 45 to 100 bar (g),
The Atlas Copco HX/HN-100 are water-cooled horizontal balanced reciprocating compressors with 4 compression stages , working pressure 45 to 100 bar (g), and installed motor 55 to 132 KW. The compressors come as complete units, skid mounted and completely wired. HX/HN-100 deliver 100% oil-free air for high pressure applications.
Energy efficient, these reliable machines provide a steady supply of compressed air 24h a day, with limited maintenance costs keeping life cycle costs to a minimum.
Our flexible HX/HN design can be used for a wide variety of applications and industries.
ZR & ZT (VSD)
Rotary screw & rotary tooth oil-free air compressors from: 3,5 to 13 bar
The components of the ZR/ZT oil free rotary screw air compressor range have been carefully designed in house. This reduces losses and pressure drop to a minimum, resulting in the highest compressor package efficiency. Our oil less compressors are also class 0 certified, delivering the highest air purity at the lowest total cost of ownership. By using our rotary screw technologies you are guaranteed to reliable and efficient compressor. Atlas Copco's VSD technology closely follows the air demand by automatically adjusting the motor speed. This results in energy savings of up to 35%.
ZP
ZP high pressure oil-free piston compressors - max working pressure 40 bar (g).
Benefits you will get:
- Energy savings
- Low maintenance costs
- Keeping your production up & running
- Driving down total costs
- Plug &; play solution for easy installation
- Small footprint leads to space saving
Downloads
Air blowers for all low pressure applications.
As a world leader in air compressor technology we also offer a range of blowers. Our blowers are the most appropriate solution for your low pressure requirements be it pneumatic conveying, waste water, mining or any other application needing low pressure compressed air. Atlas Copco we always strive to improve the energy efficiency in order to provide our customers with the best ownership benefits and the lowest operational cost. We have taken this philosophy to our blowers. With our low pressure products you well equipped to take control of your operations that require low pressure pneumatics.
In our range we offer a single-stage Z blower with asymmetric screw design (ZE/ZA), a high-speed direct drive turbo blower range (ZB), the first energy efficient screw type air blower (ZS) and with our range of multistage centrifugal blowers and exhausters
Air blower Industries and applications.
Atlas Copco offers you a comprehensive range of 100% oil free air blowers for all low pressure compressed air needs in:
- Cement factory.
- Waste water treatment plant.
- Fish farm.
- Flour mills
- Oil & Gas.
- Power plant.
- Marine industry
- Mining
- Food and beverage
- Brewery
- Glass Industry
- Steel and Metal
- Textile
- Semiconductor and Electronics
The right blower for your production process
Up to 80% of a blower’s lifecycle cost is consumed by its energy usage. When you are mainly considering the total cost of ownership of your blower installation, you need to look for an energy-efficient solution.
Our energy-efficient solutions such as our ZS rotary screw blowers and our ZB VSD⁺ turbo blowers ensure you low operational costs. Both our oil-free screw blowers and turbo blowers are Class 0 certified. You can optimize your compressed air installation further with our central controllers.
If you’re focusing on the initial investment cost of your blower installation, our simple and robust solutions such as our ZL lobe blowers and ZM multistage blowers are the perfect fit for your business. These two technologies are also extremely suited for operation under harsh weather conditions or at high altitudes.
- ZB 5-6 VSD+_EN 14.8 MB, PDF
- ZB 100-250 VSD (100-250 kW/135-335 hp) 1.3 MB, PDF
- ZS 4 & ZS 4 VSD & ZS 4 VSD+_EN 48.7 MB, PDF
- ZS 18-315 (18-315 kW / 24-422 hp) ZS 18-355 VSD (18-355 kW / 24-475 hp) 5.8 MB, PDF
- ZM 100 - 40 000 Leaflet 835.5 kB, PDF
- ZL1-4 vsd 6.3 MB, PDF
What our customers say about us!
ZS_oil-free screw blowers in WWTP_customer testimonial
The aeration blower system accounts for up to 70 % of the energy usage in a typical biological wastewater treatment plant. Thanks to, Atlas Copco's innovative oil-free screw blowers, you can save about 30% more energy compared to conventional lobe technology : a significant cost reduction!
Customer testimonial_ZB VSD oil-free centrifugal air blower in waste water treatment plant
This green community customer is responsible for the waste water treatment of over 110.000 people and all the companies in the region. They installed Atlas Copco's ZB VSD oil-free air centrifugal blowers. They helped them avoid any contamination of their process and operate at a very high energy-efficient level and reduce their maintenance cost, noise level and energy bill significantly.
