Vane Air Motor LZL
Technical Specifications
Air information
Air consumption at max output
29 l/s
Safety
Ingress protection rating
IP66
Dimension & weight
Inlet hose size
13 mm
Outlet hose size
20 mm
Weight
3.8 kg
Material
External parts material
Powder coated cast iron
Speed
Free speed
11000 r/min
Power
Max output
1.05 kW
Speed at max output
5300 r/min
Torque
Min starting torque
2.8 Nm
Stall torque
3.8 Nm
Torque at max output
1.9 Nm
Design & Functions
Built in brake
No
Rotation direction
Reversible
SCIP
b70d15fd-8301-4fea-893a-db481d215b0e
Shaft type
Keyed
Vane type
Lubrication free
Certifications, standards & directives
ATEX code dust
Ex II 2 D Ex h IIIC T85°C Db X
ATEX code gas
Ex II 2 G Ex h IIC T6 Gb X
ATEX
Yes
ATEX Max Temperature
85 °C
ATEX Technical file
9836 4610 00
Compliance with other EU Directives
2014/34/EU (ATEX)
Compliance with other UK Regulations
S.I. 2016/1107
EU Legislation
2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)
EU Standard
EN 1127-1:2019, EN ISO 12100:2010, EN ISO 80079-36:2016, EN ISO 80079-37:2016
UK Regulations
S.I. 2008/1597 (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)
UK Standard
BS EN 1127-1:2019, BS EN ISO 12100:2010, BS EN ISO 80079-36:2016, BS EN ISO 80079-37:2016

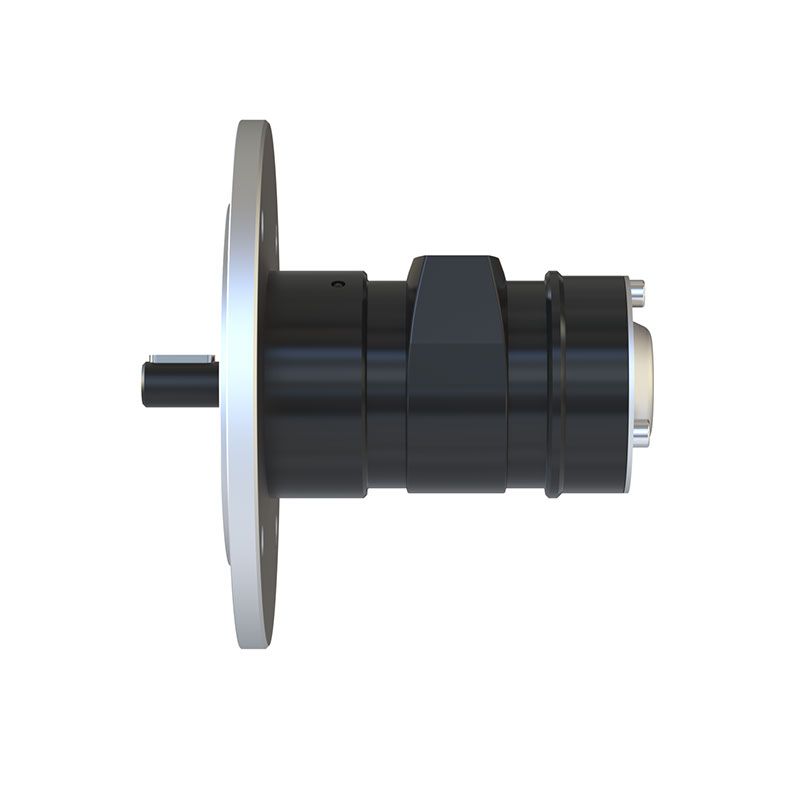

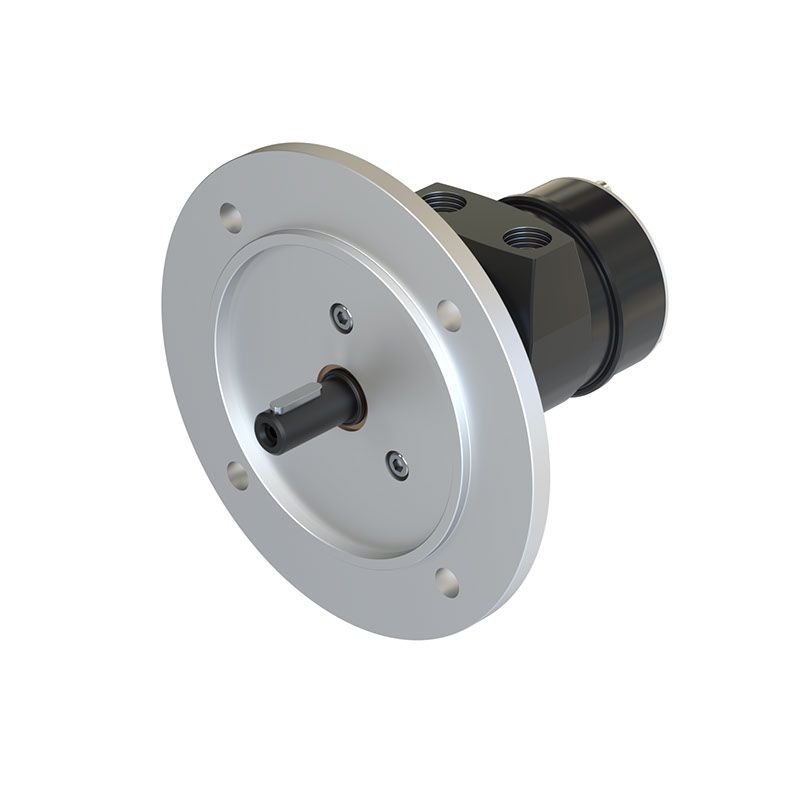

LZL03-L-P-IEC
8411 1009 88
Dimensions 36.5 x 16 x 17.5 cm
Weight 3.48 kg
