STpad

The center of all your Quality activities



QA Platform 4.0 leaflet
QA Platform 4.0 leaflet
Contact us
Contact us

QA Platform 4.0 home
QA Platform 4.0 home


The center of it all

The STpad is the center of all Quality activities. Each operator can connect their own STpad to the necessary measurement equipment: STbench, IRC-Connect and STwrench.

Ease of use

Operators can exit a route and return to it at a later time. STpad will clearly indicated if a route is fully or partially completed.

Fully customizable

STpad licenses are designed to create the exact configuration to match each customer’s applications.

Human interaction

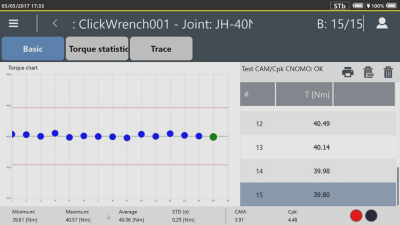

The STpad - a unique user interface Users can easily navigate the STpad interface thanks to its 10 inch touch screen display. Any type of test data can be edited directly on the STpad. Once a test is started, the operator can choose which information they want to look at: • Test results • Traces • Statistics

Reduction in defects

The operator is guided in the tests performed with QA Platform 4.0 equipment with many different functionalities, including: • Clear and intuitive interface on touch screen • Localized language on STpad The interface is common for all the applications, reducing the learning curve and the risks of mistakes.

Increased productivity

The STpad's Quick Programming functionality automatically creates and starts a test with a few clicks, reading the data from the connected transducer - no computer or external software is needed to program it. Operators can connect an external keyboard, as well as an external monitor directly or with the use of a docking station. Tests on automated stations can be done automatically by Atlas Copco's IRC-Connect tranducer.
Technical specifications • 5th generation Intel® Core™ i5 processor 5350U • IP65, MIL-STD-810G, 5 foot drop resistance • 10.1-inch 1920 x 1200 WUXGA touch display • Hot swappable battery design • Dimensions 28 x 19.5 x 2.3 cm (11” x 7.7” x 0.9”) • Weight 1.36 k g (3.0 lbs) • Operating temperature -20°C to 60°C (-4°F to 140°F) • Humidity 5%~95%
