Bolt Grades and Joint Types – Not All Bolted Joints Are Created Equal

Have you noticed numbers like 8.8, 10.9, or 12.9 stamped on high-strength bolts? These are indicators of the bolt’s strength class (per ISO standards). For example, Grade 8.8 means the bolt has a minimum tensile strength of 800 N/mm² and a yield strength of 0.8×800 = 640 N/mm². In simpler terms, a Grade 8.8 bolt is stronger than a 4.6, but not as strong as a 10.9 or 12.9. The first number is tensile strength (in hundreds of MPa), second number is the fraction of that which is yield point.

Why should a user care? Because the bolt’s grade tells you how much stress it can handle and therefore what torque it can be tightened to. Using the wrong grade can be disastrous: Imagine the assembly calls for an 8.8 bolt tightened to 50 Nm. If someone accidentally uses a lower grade 4.8 bolt, that bolt might yield or break before reaching 50 Nm because it’s weaker. Conversely, using a much higher grade than needed can be wasteful or even risky if the rest of the joint isn’t designed for those forces.

Each bolt grade will have recommended torque values for a given diameter (these can be found in engineering tables). Higher-grade bolts can take more torque (thus more clamping force) before stretching or breaking. So always replace like-for-like: if a joint was designed with 10.9 bolts, use 10.9 for replacements and torque them accordingly.

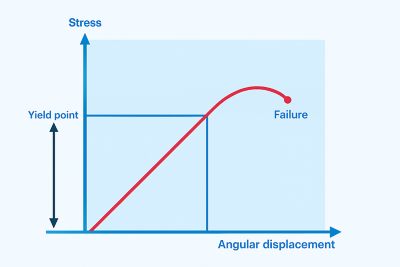

As you tighten, bolts first stretch elastically (like a spring) and will return to original length if loosened. If you go past the yield point into the plastic region, the bolt deforms permanently. Some advanced tightening strategies actually tighten into the yield region for maximum clamping accuracy, but that’s usually for controlled scenarios with specific bolts (often one-time-use, like torque-to-yield head bolts in engines). For general purposes, you want to stay in the elastic range – tighten the bolt to spec, but not beyond.

Now let’s talk about the joint itself – the materials and configuration the bolt is clamping. You may have noticed that sometimes a bolt “snugs up” and reaches torque with just a short twist, whereas other times you can turn and turn before it’s tight. These are often referred to as hard joints vs soft joints in tightening technique.

• Hard Joint: This is a joint where the parts being clamped are rigid and don’t compress much. For example, a short bolt clamping two steel plates is a hard joint. You reach the necessary clamping force (and specified torque) after only a small rotation past the snug point. In technical terms, it has a high “torque rate” – torque rises quickly with little angle. From the user perspective, a hard joint “feels” like it gets tight almost immediately.
• Soft Joint: This is a joint where the clamped parts deform or there’s a long bolt length involved. Think of a long bolt going through several components, or a bolt with a compressible gasket or a stack of soft materials. You have to turn the fastener through a larger angle to achieve the desired torque because the joint members are squeezing down or the bolt is extra long (stretching more). A soft joint has a low torque rate – it takes more rotation to build up torque.

Why does this matter? For one, if you use a power tool, the joint’s hardness affects how the tool should be set. Power tools often tighten based on torque and may have shut-off settings. If a tool is calibrated on a hard joint and then used on a soft joint (or vice versa), you might get very different results in achieved torque/clamp. Many assembly tools specify joint conditions for their torque accuracy ratings.
