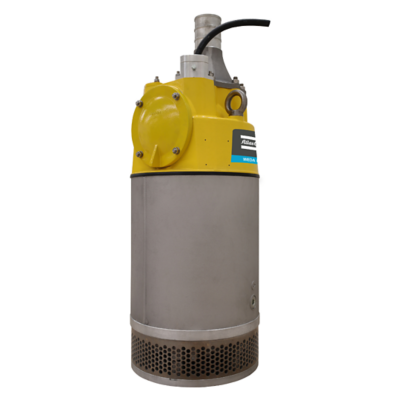

The WEDA D95 drainage pump features a max head of up to 340ft, max flow of 3000 USgpm, and can withstand solids of up to 0.63 in.
.png)
The WEDA drainage pumps handle either clean or sand-laden water, even with small solid particles, with the best performance and efficiency. These pumps are designed with robustness, sustained performance and ease-of-maintenance in mind. Suitable for general dewatering applications, ground water, raw water, construction sites and harsh conditions on site.
| Product Code | WEDA D95 |
| Installation | Portable drainage pump |
| Hydraulic range | N - Normal Head H - High head SH -Super High Head |
| Insulation class | H (+180°C/+356°F) IEC 85 (VFD-ready) |
| Protection class | IP68 |
| Voltage variation | Max ± 5% of nominal voltage |
| Voltage imbalance | Max 2% - between phases |
| Max start-stop | Max 30 starts/hour |
| Cable | H07RN-F (20 m) or SOOW AWG (65 ft) |
| Casted parts | Corrosion resistant aluminum |
| Impeller | High chrome iron, 55±5 HRC |
| Wear parts | Rubber (NBR) |
| Strainer | Corrosion resistant aluminum |
| Shaft | Stainless steel |
| O-rings | Rubber (NBR) |
| Main bearing | Double row ball bearing, pre- greased |
| Mechanical seal | Stainless-steel cartridge-type double mechanical seal SiC/SiC |
| Thermal contacts | 140°C / 284°F |
| Options / accessories | External starter box Zinc anodes Epoxy coating Pump raft |
| Product Code - WEDA D95 | N - Normal Head | H - High Head | SH - Super High Head |
| Solids handling, strainer hole | 0.63 in (16 mm) | 0.47 in (12 mm) | 0.47 in (12 mm) |
| Liquid temperature | Max 104°F | Max 104°F | Max 104°F |
| Depth of immersion | Max 65 ft | Max 65 ft | Max 65 ft |

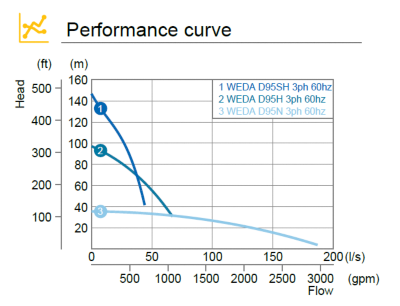

| Max Head | 110 ft | 340 ft | 482 ft |
| Max Flow | 3000 USgpm | 1100USgpm | 700 USgpm |
| Max liquid specific gravity | 1.1 | 1.1 | 1.1 |
| pH of the pumped liquid | pH 5–8 | pH 5–8 | pH 5–8 |
| Weight and dimensions - WEDA D95 | N - Normal Head | H - High Head | SH - Super High Head |
| Discharge connection | 8 in | 4 in | 4 in |
| Height | 52.4 in (1330 mm) | 52.4 in (1330 mm) | 53.2 in (1350 mm) |
| Width | 18.1 in (460 mm) | 18.1 in (460 mm) | 18.3 in (465 mm) |
| Diameter | 18.1 in (460 mm) | 18.1 in (460 mm) | 18.3 in (465 mm) |
| Weight (excl. cable) | 589 lb (265 kg) | 589 lb (265 kg) | 660 lb (300 kg) |
WEDA D95 Drainage pumps are used for various general dewatering purposes on construction sites. During construction, it is crucial to remove shallow water and groundwater to keep the project on schedule. The Atlas Copco D95 pumps are portable and can be moved where they are needed the most.
Quarries require dewatering for a variety of reasons. In order to mine the aggregate for concrete and other construction materials, it needs to be sufficiently dry at the quarry. The WEDA D95 pumps can provide the dry sump needed for proper working conditions.
