Mounting and suspension systems

Mounting and Suspension Systems

Atlas Copco’s wide selection of mounting and suspension systems for your operations are the ideal choice when it comes to ergonomics, efficiency, and workplace organization. Perfect for a large variety of different applications, our mounting and suspension systems include controller stands, controller frames, our Component Mounting System – CMS, the Fixtured Tool Suspension – FTS, Hand Tool Suspension – HTS, and more. 

Mounting

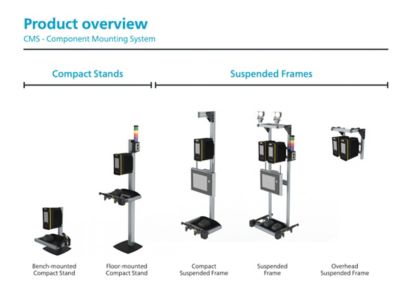

Choose from Atlas Copco’s Component Mounting System – CMS or from a selection of controller mounts, stands, and frames for your mounting requirements. Enabling space-efficient workstations, mounting systems from Atlas Copco allow for limitless possibilities in mounting: • Tools • Controllers • Station accessories • Cables

Suspension

Within our Workstation Solutions product portfolio are two suspension systems: The Reaction Suspension System – HTS and the Fixtured Tool Suspension – FTS. For tightening with both handheld tools and fixtured tools, Atlas Copco has the suspension solution for you.

Hand Tool Suspension – HTS  Ideal for handheld tooling applications, the Hand Tool Suspension – HTS is versatile and ergonomic, featuring a linear motion device that provides vertical travel for positioning and torque reaction of the tool.   With the Hand Tool Suspension – HTS, you can expect:  • Reduced operator fatigue  • Improved operator ergonomics and safety  • Streamlined cable management  • Low handling forces and smooth movement  Fixtured Tool Suspension – FTS Designed to meet a wide variety of application demands, the Fixtured Tool Suspension – FTS is flexible and adaptable. The Fixtured Tool Suspension – FTS utilizes a sturdy, proven method to reduce torque reaction and provide the lowest of operating forces and the highest of rigidity. With the Fixtured Tool Suspension – FTS, you can expect: • Easy configuration and assembly • Linear guidance for operators • Integrated cable management • High system rigidity

Workstations

Tools, controllers, and accessories require mounting and positioning for the most optimal ergonomics and performance. Atlas Copco’s Smart Connected Workstation – SCW provides limitless opportunities for tool, controller, and accessory mounting. The Smart Connected Workstation – SCW supports all Atlas Copco tools, controllers, and software.

The Smart Connected Workstation – SCW provides:

• Overhead suspension

• Compact floor stands

• Compact suspended frames

• Accessory mounting capabilities

Balancers

Atlas Copco offers two different types of balancers for your production requirements: The Tool Balancer – RIL and the Tool Balancer – WP. Both balancer options allow for a payload to be hung overhead the workstation reduce operator muscle stress during production.

The Tool Balancer – RIL Utilizing a retractable cable, the Tool Balancer RIL is a weightless balancer that provides the ability to reposition the suspended payload or maintain it in a constant position. Equipped with an adjustable wire stop and a safety chain, the Tool Balancer – RIL increases ergonomics and reduces operator fatigue.

Group image of weightless positioning balancers

The Tool Balancer – WP The superior construction of Atlas Copco’s Tool Balancer – WP allows for use in virtually any production application on an assembly line or in a workstation. With low operating forces and a seatbelt safety feature that locks in cables at any sudden release or pull, your operators will be safer, happier, and more comfortable on the line. With the Tool Balancer – WP, ergonomic benefits include: • Improved process accuracy • Increased production volume • Reduced safety hazards • Reduced operator fatigue
